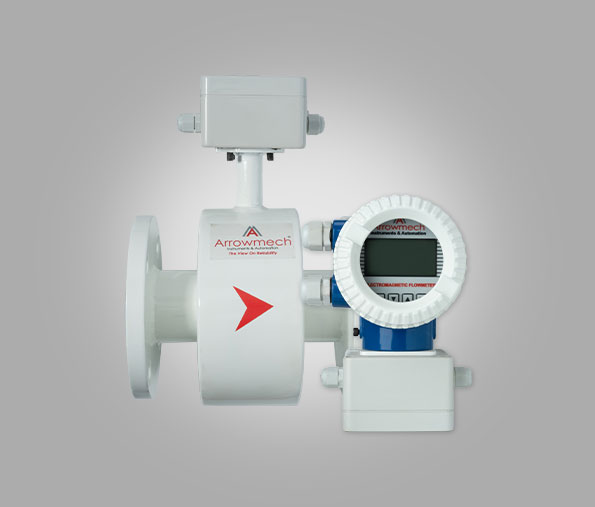

Electromagnetic
Flow Meter

Line Size

15 mm to 300 mm

Process Pressure

10 kg/cm²

Process Temp.

PTFE – 150°c
Rubber – 85°c

Electrode MOC

SS 316 Hastelloy C

Internal Lining

PTFE / Rubber

Display Version

Remote / Integrated

Measuring Tube
Material

SS 316

Connection

Flange ANSI 150

Electromagnetic Flow Meter Product Description

Arrowmech Instruments & Automation, a leading electromagnetic flow meter manufacturer and supplier based in Gujarat, India, Our flagship product, the AEFM-100 Electromagnetic Flow meter, represents a revolutionary solution for industrial flow measurement. This high-tech instrument utilizes advanced microcontroller technology and the principles of Faraday's law to precisely measure the flow rate of conductive liquids and slurries within closed pipes.

Unlike traditional mechanical flow meters, the AEFM-100's magic lies in its non-invasive technology. A magnetic field generated around an insulating pipe eliminates obstructions, minimizing pressure drop and ensuring accurate readings, even for low flow rates. This impressive versatility extends to the breadth of liquids it handles, from water and chemicals to slurries and viscous fluids.

Built with durability and reliability in mind, this full-bore electromagnetic flow meter stands strong in demanding environments. Its high-quality construction translates to minimal maintenance, thanks to its clever no-moving-parts design. To seamlessly integrate into your existing systems, it offers versatile analog and digital outputs.

Trusted by industries worldwide, Arrowmech Instruments & Automation remains dedicated to delivering cutting-edge solutions for hassle-free flow measurement at competitive prices. With a global reputation for excellence, we take pride in providing innovative and dependable flow meter solutions that empower efficiency and optimize processes. Go with Arrowmech the best electromagnetic flow meter manufacturer, and let your flow be flawlessly measured, and effortlessly managed.

Measuring Range

0.2 to 12 m/s (Bidirection)

Accuracy

0.5% (0.2% Contact Us)

Repeatability

±1% of span

Display

LCD Multiple Info.

Measuring Units

Selectable : KG/H, M³/H, L/H,L/M, L/S, KG/M, KG/S

Output

4 ~ 20 mA, RS 485, Pulse

Power Supply

80 ~ 240 V A.C. / 24 V D.C.

Protection Class

IP 67 (Transmitter)

Remote Display

10m Cable

Processor

ARM Microprocessor

Conductivity

10 µS/cm

Response Time

0.3 Seconds

Empty Pipe Detection

yes

Environment Temperature

0°c to 55°c

Electronics Housing

Die Cast Alluminium (IP 65)

Features

  • Precise Measurement : The flow meter utilizes magnetic coils and electrodes to provide highly accurate measurements of fluid flow. This ensures precise measurement and control of industrial processes.

  • Wide Measuring Range : With a bidirectional measuring range of 0.2 to 12 m/s, this flow meter can handle a broad spectrum of flow rates, making it suitable for a wide range of applications.

  • High Accuracy: The electromagnetic flow meter offers an accuracy of 0.5%, ensuring that the measured values are highly reliable and trustworthy. This accuracy level is crucial for maintaining process efficiency and reducing wastage.

  • Durable Construction : Built to withstand harsh environments, the flow meter features a robust design that can withstand extreme temperatures, pressure, and corrosive substances. This durability ensures long-term performance and reduces the need for frequent maintenance or replacements.

  • Multiple Display Options: The flow meter offers various information display options, allowing users to choose the most convenient and intuitive way to view the flow data. This flexibility improves user experience and simplifies data interpretation.

  • Versatile Output Options : The flow meter supports multiple output options, including 4~20mA, RS485, and Pulse outputs. This allows for seamless integration with other control and monitoring systems, enabling efficient data transfer and process automation.

  • Fast Response Time : With its fast response time, the flow meter can quickly detect and respond to changes in flow rates. This real-time monitoring capability is essential for maintaining process stability and promptly identifying any anomalies or deviations.

  • Wide Operating Temperature Range : The flow meter is designed to operate in temperatures ranging from 0°C to 55°C, making it suitable for various industrial environments. This versatility ensures reliable performance in both hot and cold conditions.

  • Empty Pipe Detection : The electromagnetic flow meter also offers additional features such as empty pipe detection, which alerts users when there is no flow in the pipe, preventing inaccurate readings. These additional functionalities enhance the overall usability and reliability of the instrument.
