Ultrasonic Flow Meter (Battery Operated)

  • Line Size

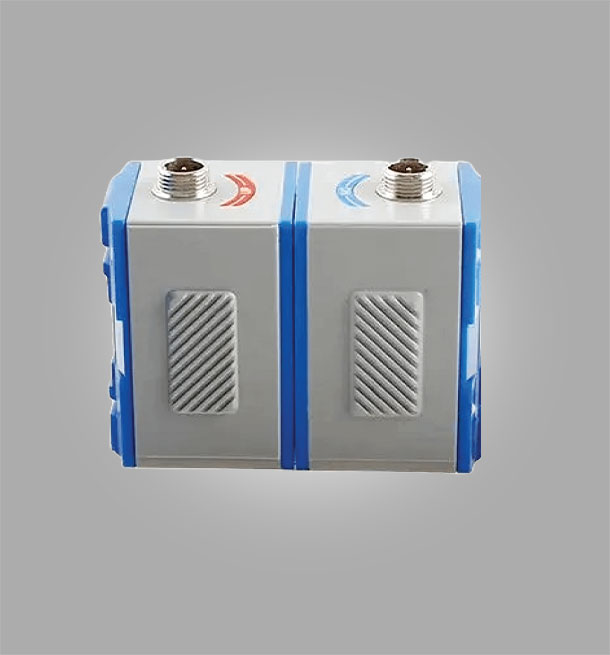

  • Small Sensor: 25mm to 100mm
  • Medium: 50mm to 700mm
  • Large: 300mm to 6000mm
  • Power Adapter Charger
    80V AC to 230V AC
  • Internal Lining
    PTFE / Rubber
  • Display Version
    Remote / Integrated
  • Process Temperature
    -30ºC to 160ºC
  • Electrode MOC
    SS 316 Hastelloy C
  • Measuring Tube Material
    SS 316
  • Connection
    Flange ANSI 150
  • Battery Life
    upto 10 hrs
  • Cable
    5m Cable with connector

India’s Leading Ultrasonic Flow Meter Manufacturer And Supplier

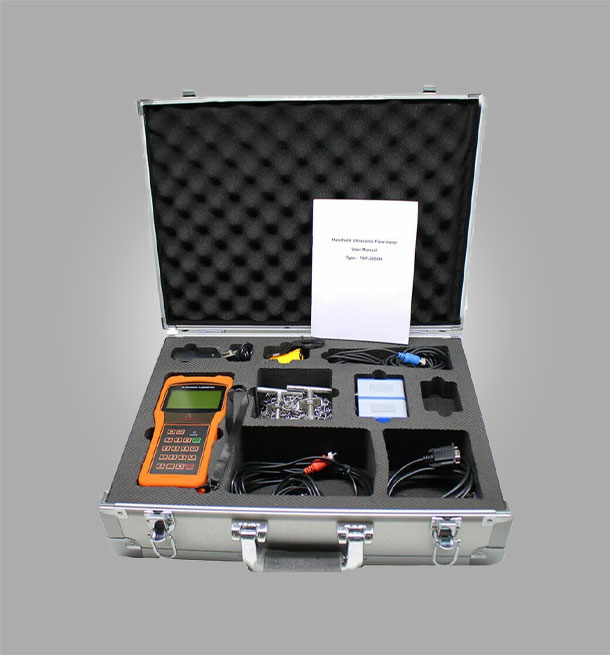

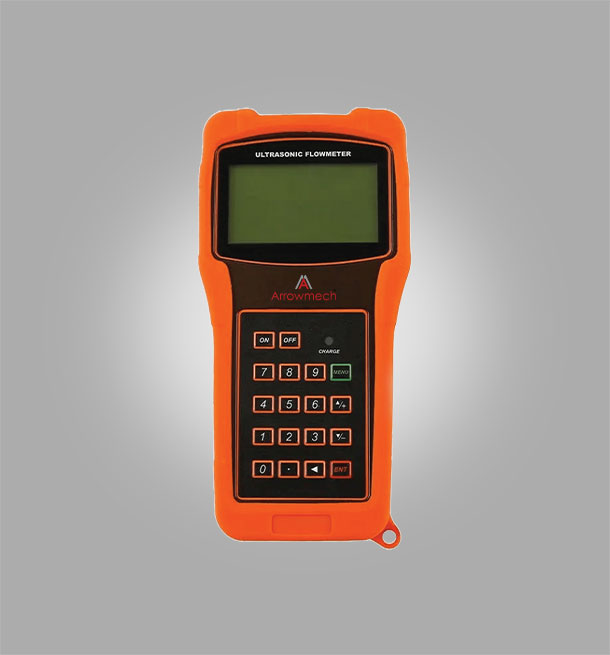

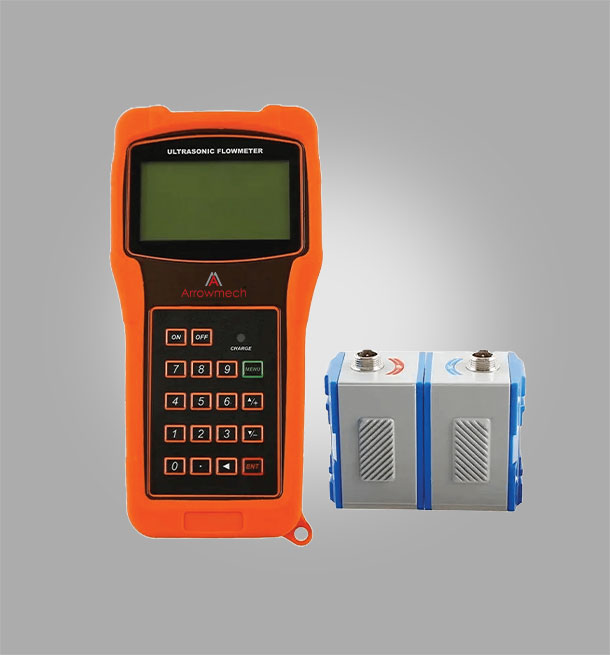

Arrowmech Instruments & Automation introduces the AUFM-100 Battery Operated Ultrasonic Flow Meter, a cutting-edge solution for measuring flow rates in various industrial applications. This portable flow meter offers accurate measurements of liquids and slurries in closed pipes, providing a convenient and reliable alternative to traditional mechanical flow meters. With its user-friendly design and advanced technology, the AUFM-100 ensures precise flow measurement without the need for external power sources.

The AUFM-100 Battery Operated Ultrasonic Flow Meter is designed for ease of use and convenience. Its streamlined design and lightweight build facilitate effortless transportation and installation in any setting. The flow meter features a simple interface that allows for easy operation and configuration, making it ideal for both experienced professionals and beginners.

One of the key features of the AUFM-100 Battery Operated Ultrasonic Flow Meter is its high accuracy. The flow meter uses ultrasonic technology to measure flow rates, providing accurate and reliable data for a wide range of applications. This high level of accuracy ensures that users can trust the flow meter to provide precise measurements, even in challenging environments.

In addition to its accuracy, the AUFM-100 Battery Operated Ultrasonic Flow Meter offers a wide measuring range. The flow meter can handle flow rates ranging from 0.01 m/s to 32 m/s, making it suitable for a variety of applications. Whether you need to measure low flow rates or high flow rates, the AUFM-100 can provide accurate and reliable data.

The AUFM-100 Battery Operated Ultrasonic Flow Meter is also designed for durability and reliability. The flow meter is built to withstand harsh environmental conditions, ensuring that it can provide accurate measurements in a wide range of operating conditions. Its robust construction and reliable performance make it a dependable choice for industrial flow measurement applications.

  • Measuring Range
    0.2 to 12 m/s (Bidirection)
  • Accuracy
    0.5% (0.2% Contact Us).
  • Repeatability
    ±1% of span.
  • Display
    LCD Multiple Info.
  • Measuring Units
    Selectable : KG/H, M³/H, L/H,L/M, L/S, KG/M, KG/S
  • Output
    4 ~ 20 mA, RS 485, Pulse.
  • Power Supply
    80 ~ 240 V A.C. / 24 V D.C.
  • Protection Class
    IP 67 (Transmitter).
  • Remote Display
    10m Cable.
  • Processor
    ARM Microprocessor.
  • Conductivity
    10 µS/cm
  • Response Time
    0.3 Seconds.
  • Empty Pipe Detection
  • Environment Temperature
    0°c to 55°c
  • Electronics Housing
    Die Cast Alluminium (IP 65)

Features Of Battery Operated Ultrasonic Flow Meter

Measurement Accuracy 1%

The battery operated ultrasonic flow meter offers a high level of measurement accuracy, ensuring precise and reliable flow rate measurements. With an accuracy of 1%, users can trust the flow meter to provide accurate data for their applications.

High Accuracy for Non-Conductive Liquids

The flow meter provides a high accuracy of 1-2% for non-conductive liquids, making it suitable for a wide range of applications where accurate flow rate measurements are essential.

Temperature Resistance up to 160ºC

The flow meter is designed to withstand high temperatures, with a temperature resistance of up to 160ºC. This makes it ideal for use in applications where the fluid temperature is a critical factor.

Portable Design

The battery-operated ultrasonic flow meter is crafted with a portable design, allowing users to easily carry and operate it in various locations. This feature enhances user convenience by providing flexibility and ease of use for monitoring flow rate data.

Durable Construction

The flow meter is built to last, with a durable construction that can withstand harsh environmental conditions. Its robust design ensures reliable performance in a wide range of operating conditions.

Multiple Display Options

The flow meter offers multiple display options, allowing users to choose the most convenient way to view flow rate data. This flexibility improves user experience and simplifies data interpretation.

Fast Response Time

With its rapid response capability, the flow meter promptly identifies and adapts to variations in flow rates. This real-time monitoring capability is essential for maintaining process stability and promptly identifying anomalies.

Easy to Install, with Minimum Maintenance

The flow meter is designed for easy installation, with minimum maintenance requirements. Its user-friendly design ensures that users can set up and operate the flow meter with ease

Can Measure Flow in Both Directions

The flow meter can measure flow in both directions, providing flexibility for a wide range of applications. This capability ensures that the flow meter can be used in various flow conditions, making it a versatile choice for industrial applications.
